DIY Metallic Epoxy Floor Kit *Covers up to 600 sq. ft.

DIY Metallic Epoxy Floor Kit *Covers up to 600 sq. ft.

Details:

DIY Metallic Epoxy Floor Kit *Covers up to 600 sq. ft.

DIY Metallic Epoxy Floor Kit  *Covers up to 600 sq. ft.

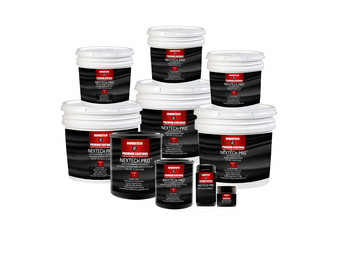

This metallic epoxy flooring kit will cover an area of up to 600 sq. ft and contains the following items:


Primer Coat:

1 – 3 gallon kit (Parts A & B)
 NEXTECH PRO™ APC 818 LVP is a Pre-Tinted, High Solids, High Build Epoxy Concrete Primer.

Standard Colors: Beige, Charcoal, Dark Gray, Fazor Tan, Light Gray, Medium Gray, Off White, Camel, Tan, Tile Red, White, Black






Decorative Coat:

2 – 3 gallon kits (Parts A & B)
 NEXTECH PRO™ APC 248 is a 100% solids, Clear epoxy. Suitable for use as a either a binder and/or broadcast coating.

Standard Topcoat:

Clear, Gloss: 1 – 1.5 gallon kit (Parts A & B)
 NEXTECH PRO™ APC 432 Clear Gloss, High-Performance Polyester Aliphatic Polyurethane Sealer Topcoat.

OR, CHOOSE AN OPTIONAL SATIN FINISH

Optional Topcoat:

Semi-Gloss, Satin: 1 – 1.5 gallon kit (Parts A & B)
  NEXTECH PRO™ APC 431 Semi-Gloss/Satin, High-Performance Aliphatic Polyurethane Sealer Topcoat

Metallic Pigments Included in Kit

1-12 oz. & 1-4 oz. Jar of Primary Color Metallic Pigment
2-4 oz. Jars of Accent Color Metallic Pigment

(Your choice of any of our Standard Color Group Metallic Colors)




Each of our DIY metallic epoxy floor kits contains a primer coat, decorative metallic coat, including two colors of metallic pigment (the main color and an accent color), and a premium protective aliphatic urethane topcoat.

The metallic pigments in our kits have been calculated to be used at a ratio of (4) four ounces per gallon of mixed epoxy. This ratio will achieve the most desired, semi-transparent look, most requested in metallic flooring installations. Please note: Depending on the opacity desired of your final look, metallic pigments can be added at a ratio of up to 12 ounces per gallon.

Read more about each product included in this kit below. For more information please review the products (TDS) Technical Data Sheets and (SDS) Safety Data Sheets by clicking the tab at the bottom of this page or by following the provided link.


Expanded information on the coating products included in this kit:


Primer Coat: 1 – 3 gallon kit (Parts A & B) NEXTECH PRO™ APC 818LVP Pre-Tinted, High Solids, High Build Epoxy Primer

APC 818 LVP is a two component 93% (+/- 1%) solids epoxy colored coating designed for applications where a high solids primer is needed before applying high solids or 100% solids topcoats for build coats over concrete.

RECOMMENDED FOR: Recommended for a high build basecoat on concrete or masonry. Product is suitable in many chemical exposure environments.

CURE SCHEDULE (70 Degrees F)
Pot Life (1.5 Gallon) 35-55 Minutes
Tack Free (Dry to Touch) 6-9 hours
Recoat or Topcoat 10-14 hours
Light Foot Traffic 12-16 hours
Full Cure (Heavy Traffic) 2-7 days
Application Temperature: 60-90 degrees F with
relative humidity below 85% for best results

Coverage Rate: 133-267 sq. ft. per gallon @ 6-12 Mil

Packaging: 1.5 gallon kit (Parts A & B), Available in Standard Colors.

Standard Colors: Beige, Charcoal, Dark Gray, Fazor Tan, Light Gray, Medium Gray, Off White, Camel, Tan, Tile Red, White, Black


Decorative Coat:

2 – 3 gallon kits (Parts A & B)
 NEXTECH PRO™ APC 248 Clear, 100% solids epoxy binder and broadcast coat.

APC 248 is a two-component, 100% solids epoxy broadcast coat that can be filled with metallic pigments, glitter, paint flakes, marble chips and colored sand mixtures to provide an infinite array of color schemes or patterns.

RECOMMENDED FOR: Garage floors, warehouses, kitchens, restrooms, and other areas where either a high build clear product is needed or where a decorative filled floor is desired.

CURE SCHEDULE (70 Degrees F)
Pot Life (1.5 Gal. Vol.) 20-30 minutes
Tack Free (Dry to touch) 6-8 hours
Recoat or Topcoat 10-16 hours
Light Foot Traffic 14-18 hours
Full Cure (Heavy Traffic) 2-7 days
Application Temperature: 55-90°F

Coverage rate: 90-100 sq. ft. per gallon @ 16-18 Mil

Packaging: 3 gallon kit (Parts A & B)

Standard Colors: Clear

Standard Topcoat:

Clear, Gloss: 1 – 1.5 gallon kit (Parts A & B) NEXTECH PRO™ APC 432 Clear Gloss, High-Performance Polyester Aliphatic Polyurethane Sealer Topcoat

APC 432 is a two component, polyester/aliphatic polyurethane floor sealer that exhibits excellent characteristics for abrasion resistance, chemical resistance, flexibility, weathering, and UV stability.

RECOMMENDED FOR: Areas where a durable high-gloss appearance is desired. Residential, Commercial, Auto service centers, warehouses, computer rooms, laboratories, aircraft hangers, cafeterias, exterior tanks, indoor or outdoor service and chemical exposure areas.

CURE SCHEDULE (70 Degrees F)
Pot Life (1 ½ gallon vol.) 2-5 hours
Tack Free (Dry to Touch) 2-4 hours
Recoat or Topcoat 4-8 hours
Light Foot Traffic 14-24 hours
Full Cure (Heavy Traffic) 3-5 days
Application Temperature: 45-90 degrees F with
relative humidity below 90%

Coverage: 320-500 sq. ft. per gallon @ 3-5 Mil

Packaging: 1.5 gallon kit (Parts A & B)

Standard: Clear Gloss

Please note: A satin appearance may be achieved by either adding an aluminum oxide additive or other powdered aggregates to APC 432 Clear, Aliphatic Urethane. The addition of aggregates will not only result in a satin finish, it will also add a textured surface much akin to the texture of 220-240 grit sandpaper. The resulting slip-resistant topcoat adds both safety and added durability to what would other wish be an eggshell/orange peel, semi-smooth, texture to the untreated urethane topcoat.

If a satin finish is desired, but you prefer the semi-smooth appearance without an aggregate additive, we offer NEXTECH PRO™ APC 431 Semi-Gloss/Satin, High-Performance Aliphatic Polyurethane Sealer Topcoat as an alternative.

Optional Satin Topcoat:

1 – 1.5 gallon kit (Parts A & B)
  NEXTECH PRO™ APC 431 Semi-Gloss/Satin, High-Performance Aliphatic Polyurethane Sealer Topcoat

APC 431 is a two component, aliphatic polyurethane floor sealer that exhibits excellent characteristics for abrasion resistance, chemical resistance, flexibility, weathering, and UV stability.

RECOMMENDED FOR: Areas where a durable semi-gloss satin appearance is desired. Residential, Commercial, Auto service centers, warehouses, computer rooms, laboratories, aircraft hangers, cafeterias, exterior tanks, indoor or outdoor service and chemical exposure areas.

CURE SCHEDULE (70 Degrees F)
Pot Life (1 ½ gallon vol.) 3-5 hours
Tack Free (Dry to Touch) 2-4 hours
Recoat or Topcoat 4-8 hours
Light Foot Traffic 14-24 hours
Full Cure (Heavy Traffic) 3-5 days
Application Temperature: 45-90 degrees F with
relative humidity below 90%

Coverage: 320-500 sq. ft. per gallon @ 3-5 Mil

RECOMMENDED FILM THICKNESS: 3-5 mils per coat wet thickness (Do not apply thicker)

Packaging: 1.5 gallon kit (Parts A & B)

Standard: Semi-Gloss/Satin


Metallic Pigments

What are metallic pigments? Metallic pigments are special effect pigments composed of crushed mica particles coated with various organic and inorganic pigments used to create pearlescent and iridescent effects that can be used to mimic the natural look of stone and other minerals. These unique pigments are designed to be blended with 100% solids clear epoxy binders. When the metallic particles are mixed with epoxy, they give the coating a shine that reflects light and creates and eye-catching dramatic color. The shimmering play of light and color created by the pearlescent effects with metallic pigments combined with durability of resinous epoxy create contemporary and edgy pearlescent effects. Optimally enhancing the aesthetic and ergonomic qualities of your surface to withstand the most challenging environments.

Metallic pigments are used in many different types of epoxy projects, from metallic epoxy flooring systems to hand-poured epoxy countertop projects. They are also employed in creating matching epoxy backsplashes, shower surrounds, wall art, and in the creation of one-of-a-kind bar tops, and custom tabletop designs.

Each of our DIY metallic epoxy floor kits contains a primer coat, decorative metallic coat, including two colors of metallic pigment (the main color and an accent color), and a premium protective aliphatic urethane topcoat.

The metallic pigments in our kits have been calculated to be used at a ratio of (4) four ounces per gallon of mixed epoxy. This ratio will achieve the most desired, semi-transparent look, most requested in metallic flooring installations. Please note: Depending on the opacity desired of your final look, metallic pigments can be added at a ratio of up to 12 ounces per gallon.
